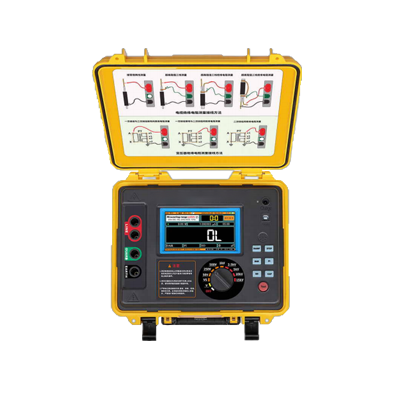

KGT-JY15 Insulation tester

KGT-JY15 Insulation tester
Product introduction

Product Overview The KGT-JY15 Insulation Resistance Tester is a high-precision instrument specificallydesigned for measuring the insulation performance of electrical equipment. With itsoutstanding stablity and reliability,it provides users with an accurate and convenient measurement method.The device employs advanced testing technology to ensure precise measurement results and features a user-friendly interface,enabling usersto quickly get started and perform efficient testing tasks.

Application Fields
The KGT-JY15 insulation resistance tester is widely used in multiple industries such as power,communications,transportation,and petrochemicals.In power systems,itis utilized to inspect the insulation performance of transformers,cables,generators,and other equipment.Within the communications sector,it measures the insulation status of communication lines and devices.In transportation and petrochemical industries,it ensures the safe operation of electrical systems.Whether for high-voltage or low-voltage equipment,the KGT-JY15 provides stable and reliable test results,safeguarding the operational safety of devices.

Features and Benefits
-High Precision Control:Utilizes precise control algorithms to ensure accuracy andrepeatability in operations.
-Strong Data Processing Capability:Capable of handling large volumes of datato support decision-making.
-Stability and Reliability:Ensures stable operation even in extreme conditions,minimizing downtime.
-User-Friendly Interface: Simplifies operation processes to enhance user experience
-Easy to Integrate:Compatible with existing industrial systems for seamless integration and scalability.
-Energy Efficiency:Designed with energy efficiency in mind to reduce energy consumption and lower operational costs.



Technical Data
KGT-JY15
Standard 15KV
Display LCD
Testing Voltage Multi-Step,up to 15 kV
Testing Voltage accurancy +4%±10V(50V时+4%±2V)
Leakage Current 0.001nA~7.5mA
Leakage Current Resolution 0.001nA
Insulation Resistance Range 5KQ-30TΩ
Insulation Resistance Accuracy 50V 0.005MΩ~10.0GΩ ±5%rdg±3dgt
10.0GQ~100GQ ±10%rdg±3dgt
250V 0.05M~50.0GΩ ±5%rdg±3dgt
50.0GQ~500G2 ±10%rdg±3dgt
500V 0.10M~100GQ ±5%rdg±3dgt
100GQ~1.00TΩ ±10%rdg±3dgt
1kV 0.50M~200G2 ±5%rdg±3dgt
200G~2.00TΩ ±10%rdg±3dgt
2.5kV 1.00MΩ~1.00TΩ ±5%rdg±3dgt
1.00TΩ~5.00TΩ ±10%rdg±3dgt
5kV 2.00M~2.00TQ ±5%rdg±3dgt
2.00TΩ~10.0TΩ ±10%rdg±3dgt
10kV 5.00MΩ~4.00TΩ ±5%rdg±3dgt
4.00TΩ~20.0TΩ ±10%rdg±3dgt
15kV 10.0MΩ~6.00TQ ±5%rdg±3dgt
6.00TQ~30.0TΩ ±10%rdg±3dgt
Operating Temperature -20℃~50℃
Testing Duration Time Os~9999s/10秒~3600S(own set)
Power suply DC14.8V,6400mAh(chargable battery)
Accessories Power Adapter
High-voltage probe (1 red;3 meters long)
Crocodile clip test leads (1 black,1 green;3 meters long)
Crocodile clips
Hooks
USB communication cable
Power adapter(DC 19V)
Tool kit
Manual
